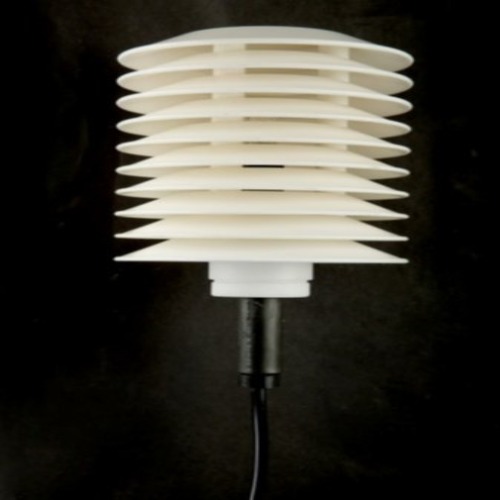

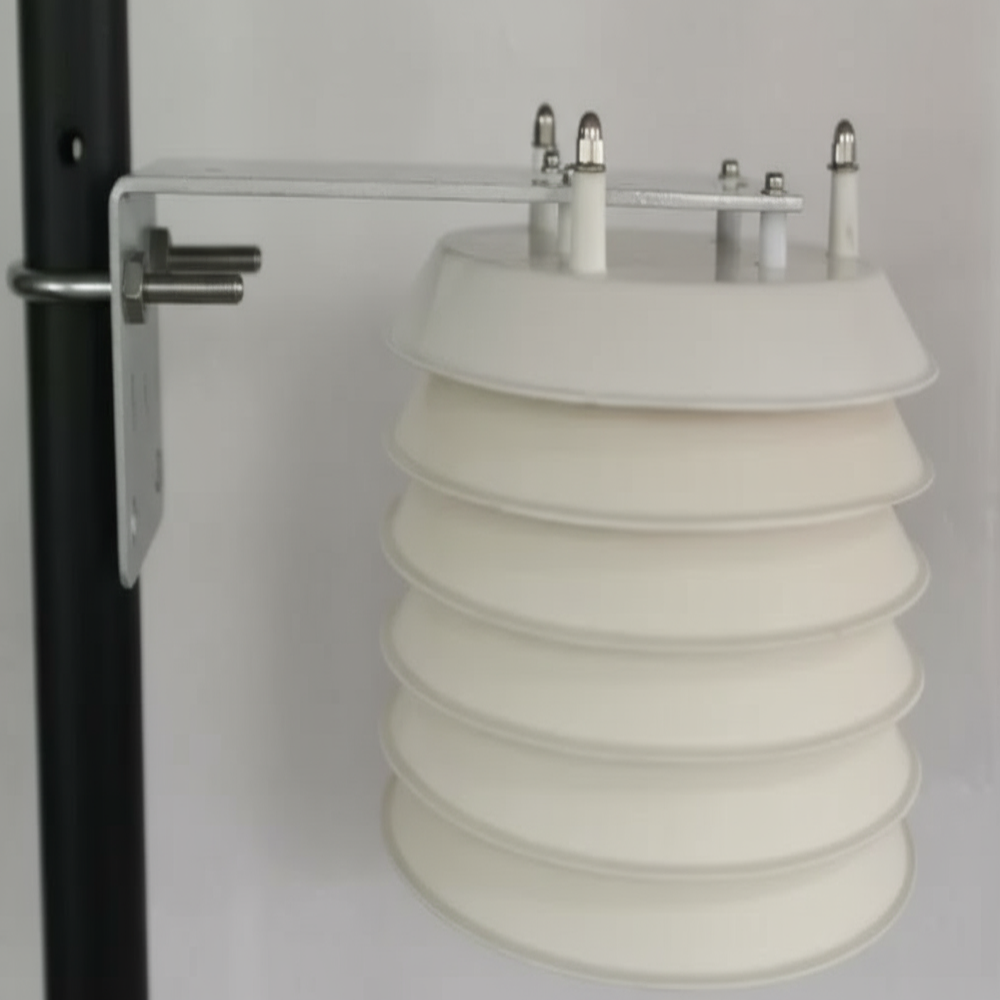

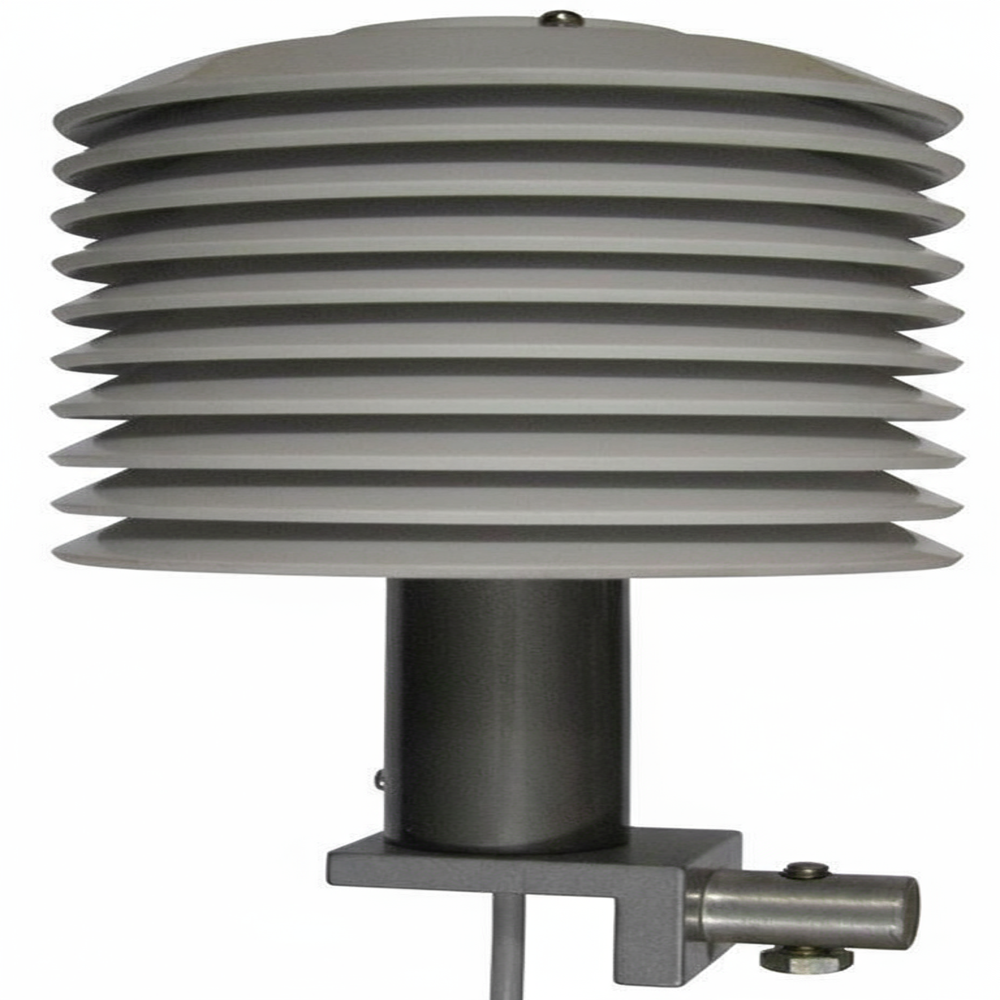

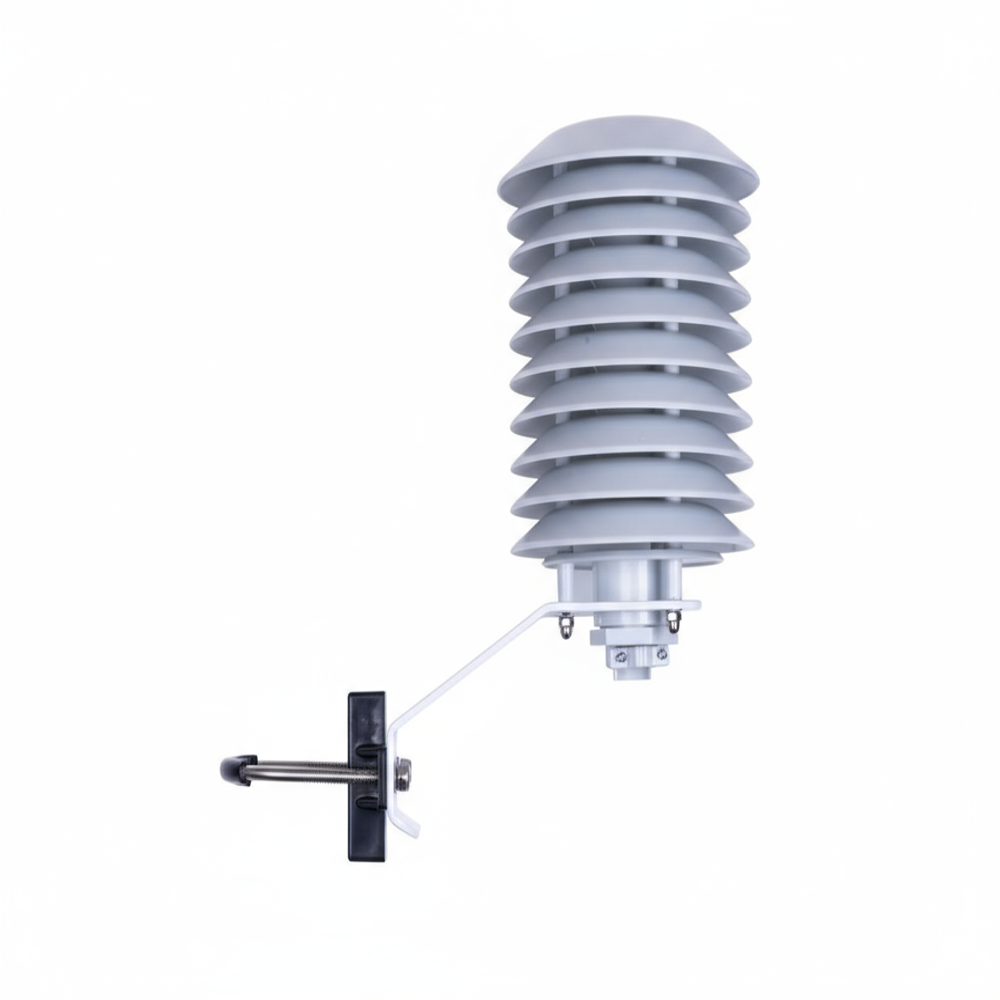

Temperature and Humidity Sensor
EMCON- Air temperature/Relative Humidity sensor is designed for Meteorological and Agro- Meteorological observation, where reliable sensor with accuracy of measurement with long term stability is a must. The low power consumption makes it ideal for remote applications. The sensor provides a linear analog output voltage output for both temperature and humidity.
The sensor can be used for long periods in hostile weather conditions, without maintenance. Special filters are provided to keep the sensor free from dust and water splash.
SPECIFICATIONS:
Air Temperature:
Type: | Thermistor type. |
Measurement range: | -20 to 60 C. -10 to 70 C |
Number of plates for weather shielding: | 7 nos. |
Operating Temperature range: | -50 to 90C. |
Output: 0 to 5 V and 0 to 3.3 V selectable. |
|
Relative Humidity:
Type: | Capacitance based. |
Range: | 0 to 100% |
Accuracy: | 1.8% |
Repeatability: | 2% |
Operating Temperature range: | -50 to 70C. |
Output: | 0 to 5 V and 0 to 3.3 V selectable. |
ELECTRICAL:
Power: | 5 to 12 V DC (Selectable depending to the output required.) |
Signal Output: | 0 to 5 or 3.3 volt with 5mA. Capacity for both the parameters. |
PHYSICAL:
Sensor:
Length: | 200 mm. |
Diameter: | 22 mm. |
Weight: | 85 grms. |
Weather shield:
Length: | 103 mm. |
Diameter: | 144 mm. |
Weight: | 500 grms. |
Price:
![]() |
